SORTA-Clear™ 18 is a premium water white translucent silicone rubber (platinum catalyst) that cures at room temperature with negligible shrinkage. A softer version of our popular SORTA-Clear™ 40, this rubber has a Shore hardness of 18A and features exceptional tear and tensile strength.
Rubber clarity is especially useful when extracting models via cutting. SORTA-Clear™ rubber is ideal for making prototype, jewelry or other molds of any configuration where model visibility is important (i.e. extracting a model from the mold via cutting).
Resins (urethane, epoxy, etc.), wax and low melt metal alloys can also be cast into SORTA-Clear™. SORTA-Clear™ can also be cast into platinum silicone (release agent required) or rigid molds for casting translucent prototype parts, etc. SORTA-Clear™ can be pigmented with SILC Pig™ silicone pigments.

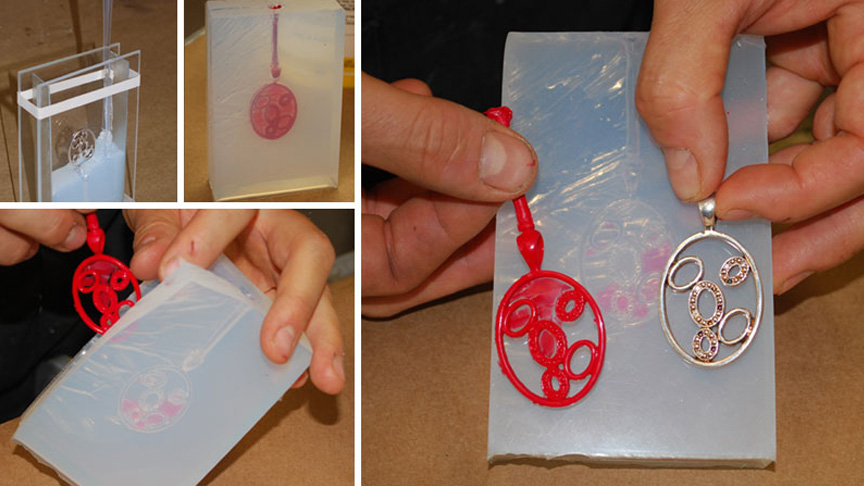

Using Sorta-Clear™ 18 To Cast Wax Jewelry Masters

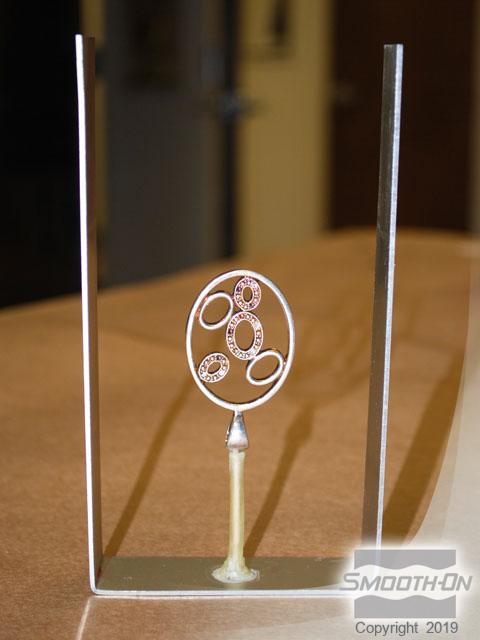

1 - The original pendant is mounted on a metal frame.

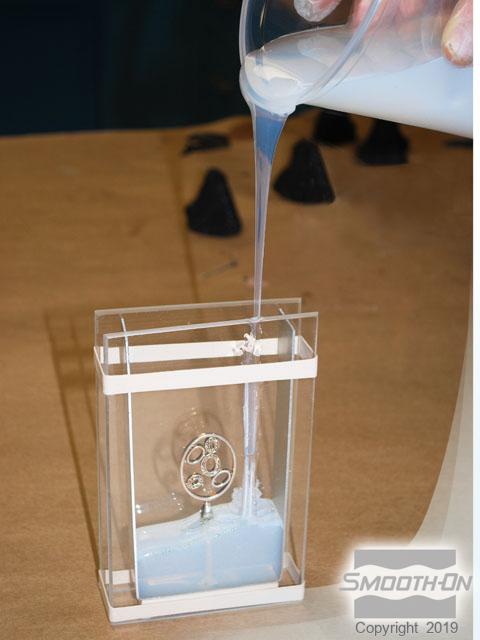

2 - Clear acrylic sheets are affixed to the frame and vacuumed Sorta-Clear 18 is poured over the pendant.

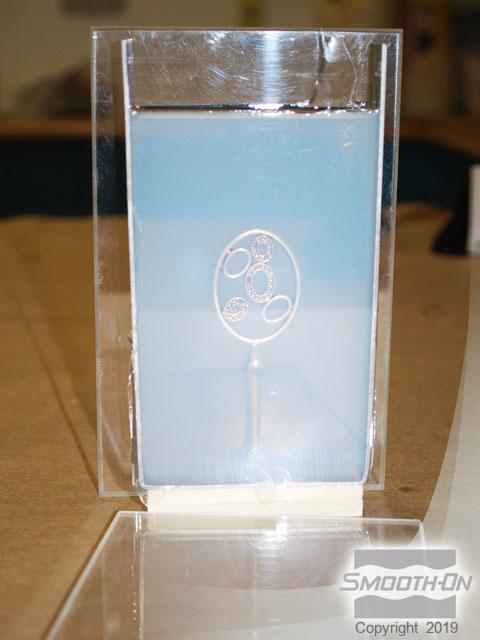

3 - After the Sorta-Clear 18 cures, the clear acrylic sides are removed.

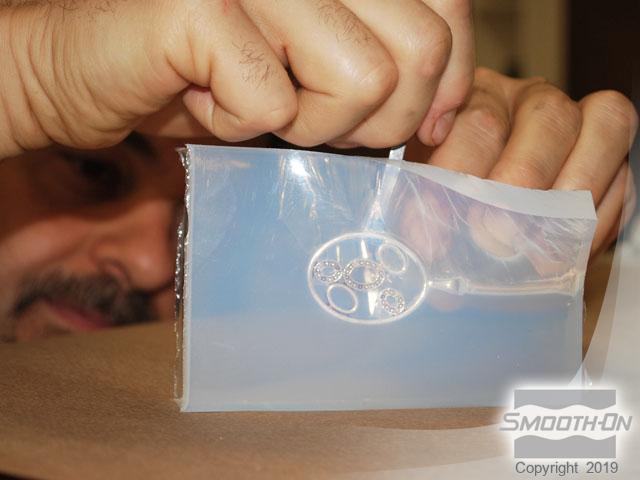

4 - Sorta-Clear 18 makes it easy to cut the mold with precision.

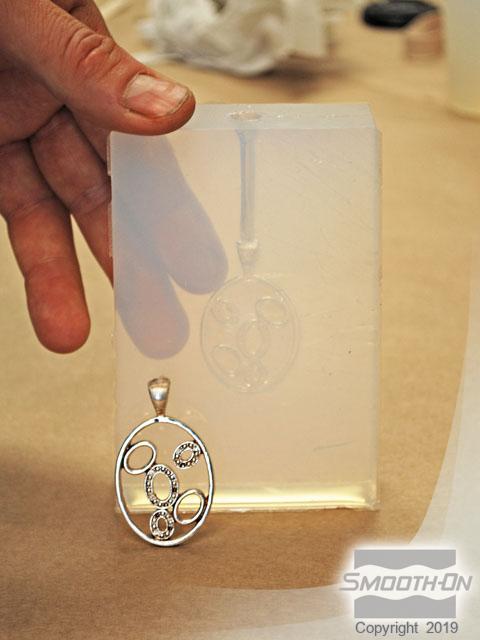

5 - The model is extracted from the mold.
6 - The mold is re-assembled and jewelers wax is cast to produce a wax duplicate.

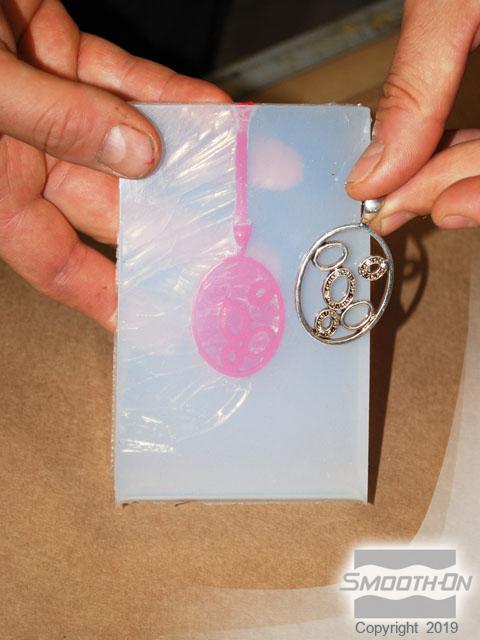

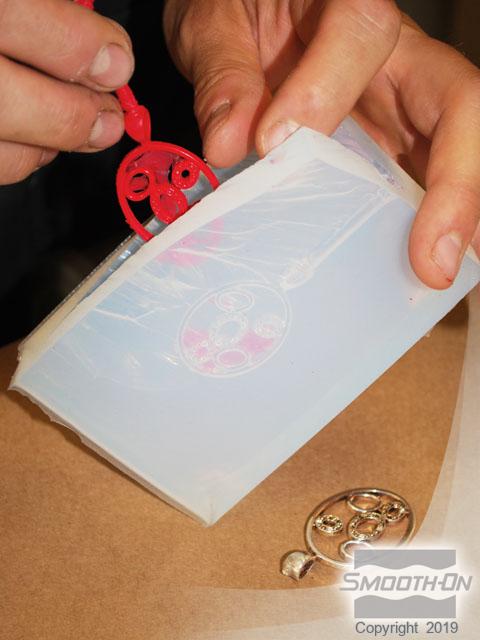

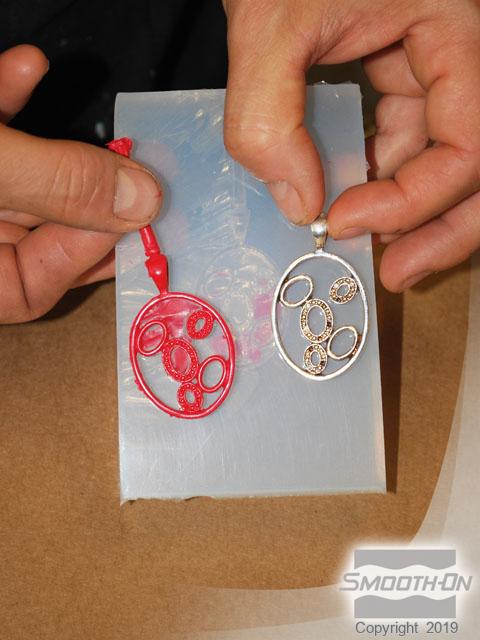

7 - The wax casting is removed from the mold.
8 - The wax casting can used in the lost wax process to produce a duplicate in silver or gold,.
