Glow Worm™

Glow Worm™ *NOTE: Product Packaging May Vary

Technical Bulletin and SDS

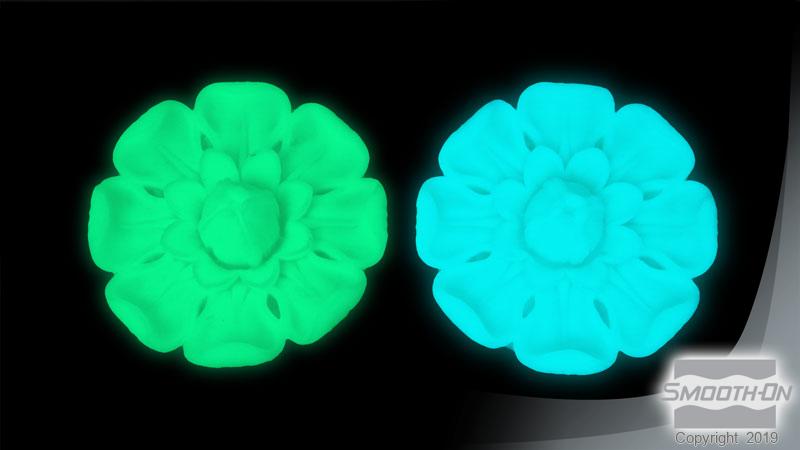

Glow Worm™ phosphorescent powders can be added to Smooth-On liquid plastics, rubbers and foams to create castings that glow in the dark after being charged with light.

What sets Glow Worm™ powders apart from other glow-in-the-dark powders? Used as directed and after being light charged as recommended, castings made with Glow Worm™ powders will glow in the dark at least 10 times longer than other glow powders.

Glow-in-the-dark castings are used for Halloween themed displays, home hobby projects, aquariums, store displays and more. These materials are also used for industrial marking, municipal safety applications and more.

Glow Worm™ powders are available in the following colors:

Glow Worm™ Name Glow Color (Night) Appearance (Day)
Blue/Green Blue Light Green
Yellow/Green Green Light Green
Bold Blue Neon Blue Blue
Creamsicle Neon Orange Orange
Electric Yellow Neon Green/Yellow Yellow
Flamingo Pink Neon Red Pink
Mint Green Neon Green Green
Purple Passion Purple White

Instructions

For best results, use Glow Worm™ powders with a fast-curing translucent resin such as Smooth-Cast™ 325. The fast curing resin allows uniform filler dispersion throughout the finished casting. If the resin system is too slow, fillers may settle unevenly in the finished casting. Glow Worm™ powders can also be added to translucent / clear silicone rubbers such as Dragon Skin™ or EcoFlex™ Series for glow in the dark props that are soft and flexible. Glow Worm™ powders can also be blended to create additional finished effects.

Directions for Use – Pre-mix all liquid resin, rubber or foam before dispensing. Store and use all materials at or near 73°F/23°C. Glow Worm™ powders must be kept dry (see ’Guarding Against Moisture’ section). Use with adequate ventilation. Read and follow directions for material used to mix with Glow Worm™ powders. The following example features SmoothCast™ 325 (A+B) mixed with Glow Worm™ powder. The powder must be thoroughly dispersed into a two component liquid resin or rubber to a uniform consistency.


Recommended Mix Ratio by Volume: 1A + 1B + 1 Part Glow Worm™ powder.

By Volume Mixing & Casting Procedure:

  1. Dispense 1 cup of Smooth-Cast™ 325 Part B into a clean mixing container.
  2. Dispense 1 cup Glow Worm™ powder into mixing container.
  3. Mix thoroughly.
  4. Dispense 1 cup of Smooth-Cast™ 325 Part A into mixing container.
  5. Mix for 30 seconds until all filler particles are dispersed and pour into rubber mold.

Lower Your Cost Per Casting - Glow Worm Powders are Expensive: Mix small amounts as directed above and brush layers into a mold to coat the mold cavity (known as a face coat or gel coat).

Optional: Combine Smooth-Cast™/Glow Worm™ mixture with 1 part Ure-Fil™ 11 to increase brushability of gel coat. Follow by backfilling with straight resin or foam.

The glow effect will be the same vs. a solid casting and material cost will be greatly reduced.


Guarding Against Moisture All powders will absorb atmospheric moisture over time which will react with urethane resins. If you notice a moisture reaction between resin and powder or suspect that your Glow Worm™ powder contains moisture, you can remedy by spreading powder evenly over a metal cookie sheet at ¼” (0.6 cm) thickness and bake in oven for 4 hours at 150° F/60° C. Allow to cool before mixing powder with resin. Store powder in a tightly closed container in a cool, dry environment with a desiccant pouch (available at your local hobby/arts and crafts store). Replace used desiccant pouches every other time you open container.

Glow Worm™ Powders are up to 50% brighter than the competition.
